- 파드는 1개 이상의 컨테이너로 구성된 컨테이너의 집합이며, PAUSE 컨테이너가 Network/IPC/UTS 네임스페이스를 생성하고 유지/공유한다.
# '컨트롤플레인, 워커 노드 1대' 클러스터 배포 : 파드에 접속하기 위한 포트 맵핑 설정
cat <<EOT> kind-2node.yaml
kind: Cluster
apiVersion: kind.x-k8s.io/v1alpha4
nodes:
- role: control-plane
- role: worker
extraPortMappings:
- containerPort: 30000
hostPort: 30000
- containerPort: 30001
hostPort: 30001
EOT
kind create cluster --config kind-2node.yaml --name myk8s
# 툴 설치
docker exec -it myk8s-control-plane sh -c 'apt update && apt install tree jq psmisc lsof wget bridge-utils tcpdump htop git nano -y'
docker exec -it myk8s-worker sh -c 'apt update && apt install tree jq psmisc lsof wget bridge-utils tcpdump htop -y'
# 확인
kubectl get nodes -o wide
docker ps
docker port myk8s-worker
docker exec -it myk8s-control-plane ip -br -c -4 addr
docker exec -it myk8s-worker ip -br -c -4 addr
# kube-ops-view
helm repo add geek-cookbook https://geek-cookbook.github.io/charts/
helm install kube-ops-view geek-cookbook/kube-ops-view --version 1.2.2 --set service.main.type=NodePort,service.main.ports.http.nodePort=30000 --set env.TZ="Asia/Seoul" --namespace kube-system
# 설치 확인
kubectl get deploy,pod,svc,ep -n kube-system -l app.kubernetes.io/instance=kube-ops-view"

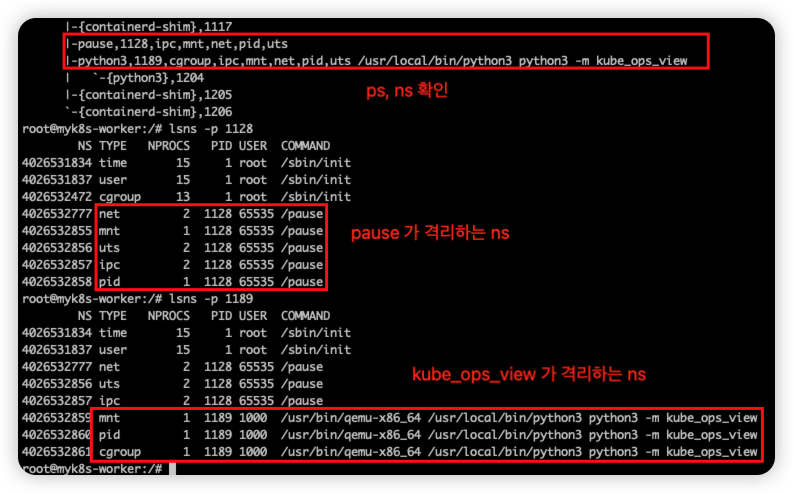

격리자원 확인
# [터미널1] myk8s-worker bash 진입 후 실행 및 확인
docker exec -it myk8s-worker bash
----------------------------------
systemctl list-unit-files | grep 'enabled enabled'
containerd.service enabled enabled
kubelet.service enabled enabled
...
# 확인 : 파드내에 pause 컨테이너와 metrics-server 컨테이너, 네임스페이스 정보
# pgrep metrics-server
pstree -aclnpsS
...
\-containerd-shim,1776 -namespace k8s.io -id 6bd147995b3a6c17384459eb4d3ceab4369329e6b57c009bdc6257b72254e1fb -address /run/containerd/containerd.sock
|-{containerd-shim},1777
...
|-pause,1797,ipc,mnt,net,pid,uts
|-metrics-server,1896,cgroup,ipc,mnt,net,pid,uts --cert-dir=/tmp --secure-port=10250 --kubelet-insecure-tls --kubelet-preferred-address-types=InternalIP,ExternalIP,Hostname --kubelet-use-node-status-port --metric-resolution=15s
| |-{metrics-server},1912
...
# 특정 소켓 파일을 사용하는 프로세스 확인
lsof /run/containerd/containerd.sock
ss -xl | egrep 'Netid|containerd'
findmnt -A
TARGET SOURCE FSTYPE OPTIONS
/ overlay overlay rw,relatime,lowerdir=/var/lib/docker/overlay2/l/HW4BGGJ4LV6M5
...
|-/sys sysfs sysfs ro,nosuid,nodev,noexec,relatime
| |-/sys/kernel/debug debugfs debugfs rw,nosuid,nodev,noexec,relatime
| |-/sys/kernel/tracing tracefs tracefs rw,nosuid,nodev,noexec,relatime
| |-/sys/fs/fuse/connections fusectl fusectl rw,nosuid,nodev,noexec,relatime
| |-/sys/kernel/config configfs configfs rw,nosuid,nodev,noexec,relatime
| \-/sys/fs/cgroup cgroup cgroup2 rw,nosuid,nodev,noexec,relatime
findmnt -t cgroup2
grep cgroup /proc/filesystems
stat -fc %T /sys/fs/cgroup/
----------------------------------
pstree -aclnpsS
containers test
apiVersion: v1
kind: Pod
metadata:
name: myweb2
spec:
containers:
- name: myweb2-nginx
image: nginx
ports:
- containerPort: 80
protocol: TCP
- name: myweb2-netshoot
image: nicolaka/netshoot
command: ["/bin/bash"]
args: ["-c", "while true; do sleep 5; curl localhost; done"] # 포드가 종료되지 않도록 유지합니다
terminationGracePeriodSeconds: 0
kubectl apply -f myweb2.yaml
kubectl exec myweb2 -c myweb2-netshoot -- ip addr
kubectl exec myweb2 -c myweb2-nginx -- apt update
kubectl exec myweb2 -c myweb2-nginx -- apt install -y net-tools
kubectl exec myweb2 -c myweb2-nginx -- ifconfig
NGINXPID=$(ps -ef | grep 'nginx -g' | grep -v grep | awk '{print $2}')
echo $NGINXPID
NETSHPID=$(ps -ef | grep 'curl' | grep -v grep | awk '{print $2}')
echo $NETSHPID

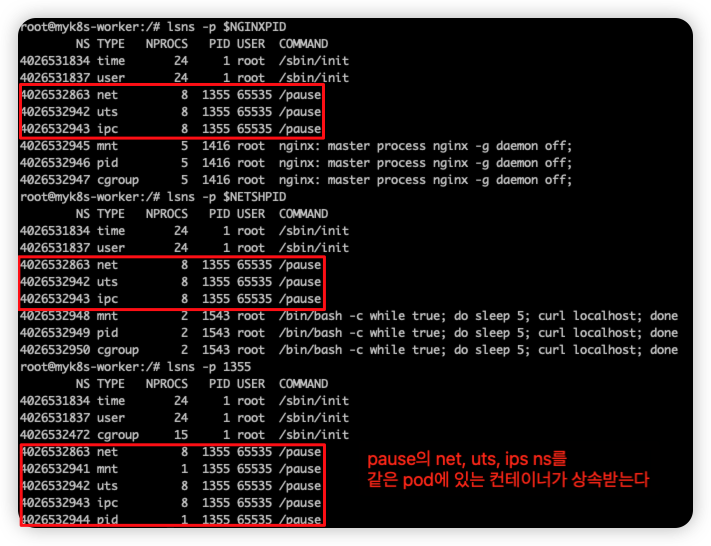

ns, ip 비교
# 개별 컨테이너에 명령 실행 : IP 동일 확인
crictl ps
crictl ps -q
crictl exec -its <myweb2-nginx 컨테이너ID> ifconfig
crictl exec -its <myweb2-netshoot 컨테이너ID> ifconfig
# PAUSE 의 NET 네임스페이스 PID 확인 및 IP 정보 확인
lsns -t net
nsenter -t $PAUSEPID -n ip -c addr
nsenter -t $NGINXPID -n ip -c addr
nsenter -t $NETSHPID -n ip -c addr
# 2개의 네임스페이스 비교 , 아래 2112 프로세스의 정제는?
crictl inspect <myweb2-nginx 컨테이너ID> | jq
crictl inspect <myweb2-netshoot 컨테이너ID> | jq
자원정리
kubectl delete pod myweb2
kind delete cluster --name myk8s
